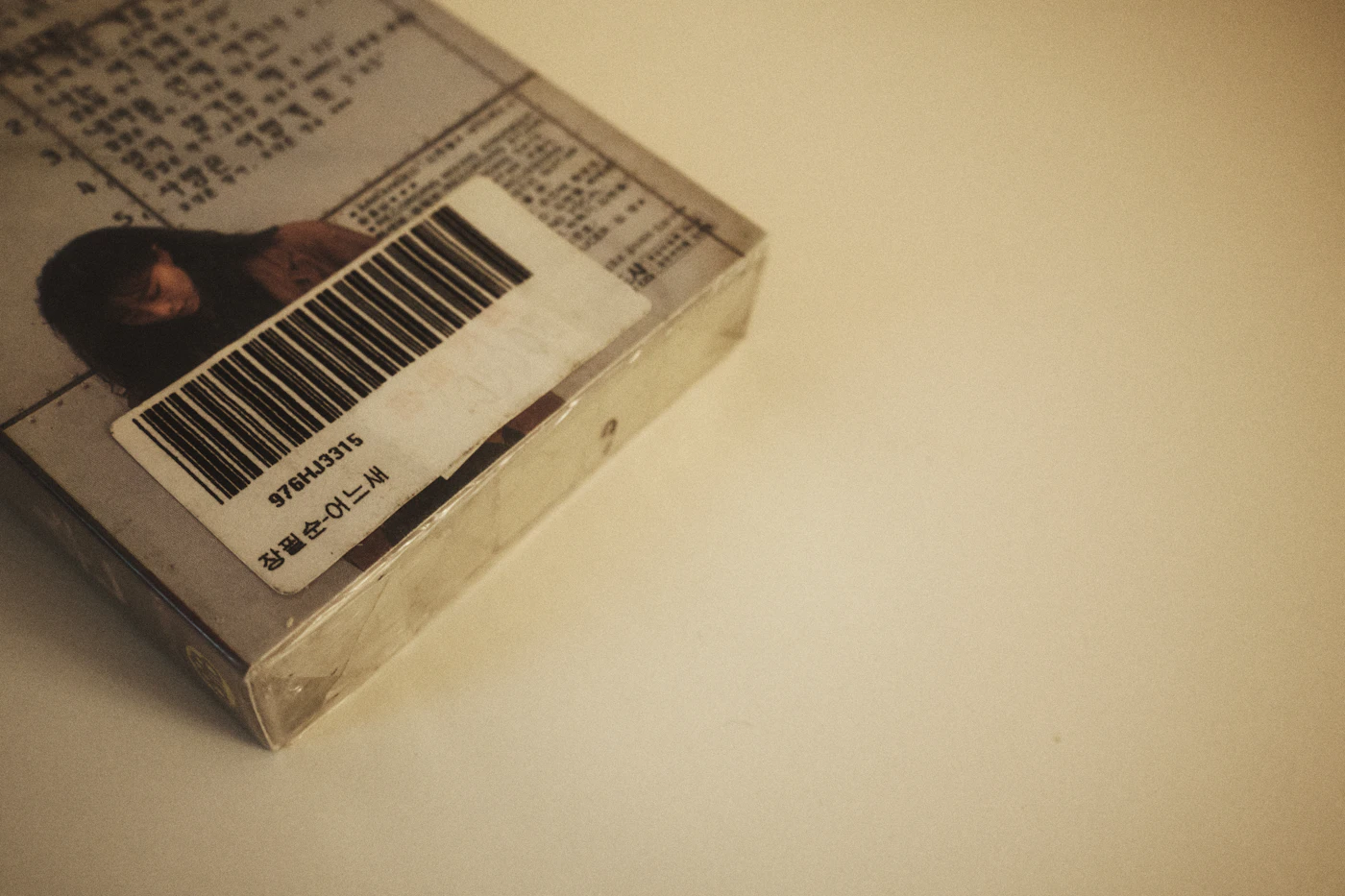

A barcode that looks perfect on the artwork proof can still fail on the packaging line. The design file is vector-sharp; the real pack is ink on foil or board, printed at line speed, sometimes under varnish, often on a curved or reflective surface. Most barcode failures in pharma aren't data problems — they're printing problems. The code carries the right information, but the scanner can't read it reliably, or a verifier grades it below the level GS1 expects.
This guide covers the printing side: which technology to use for which pack, how big the code needs to be, what print-quality grades mean, and the mistakes that make a compliant barcode unreadable. It picks up where generating the code leaves off — if you still need a GS1 Company Prefix and your first GTIN, start with how to generate a GS1 barcode in India.
Static vs Variable: Two Different Print Jobs
Every pharma barcode has a static part and a variable part, and they are usually printed in different places by different machines.
- Static data — the GTIN and fixed product text — never changes for a SKU. A plain EAN-13 carrying only the GTIN can be printed with the carton artwork itself, by offset or flexo, at the printing press.
- Variable data — batch number, manufacturing date, expiry and any unit serial — changes per batch or per pack. Any code that contains it has to be printed on the packaging line, at the moment of packing, by an on-line coder.
A Schedule H2 code carries batch and dates, so it is always a variable print job. That makes the choice of on-line coder the single biggest factor in whether your codes read well.
Choosing a Print Technology
| Technology | Best suited for | Strengths | Watch out for |
|---|---|---|---|
| Thermal inkjet (TIJ) | Cartons, labels, porous board | High resolution, crisp 2D codes, clean cartridge system, common on Indian carton lines | Ink adhesion on foil and coated surfaces; drying time before the next station |
| Continuous inkjet (CIJ) | Bottles, caps, high-speed lines, non-porous surfaces | Very fast, prints on curved and difficult surfaces | Dot-based output is lower resolution — small 2D codes can lose definition |
| Laser marking | Coated cartons, labels with a laser-reactive layer | Permanent, no ink or consumables, very hard to tamper with | Needs the right substrate or coating to give enough contrast |
| Thermal transfer (TTO) | Flexible films, foil lidding, labels | Sharp, high-contrast print on films and foils | Ribbon consumption; needs a flat backing at the print point |
| UV inkjet | Foil blisters, non-porous materials | Ink cures instantly, adheres to difficult surfaces | Higher equipment cost; curing setup on the line |
There's no single right answer. A plant often runs TIJ on cartons, thermal transfer or UV on foil, and a label printer for shippers. What matters is matching each coder to its substrate and confirming the output grades well at full line speed, not just during a slow test run.
Getting the Size Right
Barcode size is controlled by the X-dimension — the width of the narrowest bar in a linear code, or of a single square module in a 2D code. GS1 publishes symbol specification tables that set a minimum, target and maximum X-dimension for each symbol and application.
- GS1 DataMatrix on healthcare items: GS1's healthcare tables set the minimum X-dimension for ink-printed DataMatrix at 0.254 mm. Going smaller to squeeze a code onto a strip is the most common reason primary-pack codes fail.
- EAN-13 for retail point of sale: the nominal (100%) size has a module of 0.330 mm, and GS1 allows magnification from 80% to 200%. Truncating the bar height to save space reduces scan reliability and should be avoided.
- GS1-128 on shippers: logistics labels are scanned from a distance, so they use a larger X-dimension than item-level codes.
Just as important is the quiet zone — the clear margin around the code. A GS1 DataMatrix needs at least one module of clear space on every side; a GS1-128 needs ten times the X-dimension at each end; an EAN-13 needs 11 modules on the left and 7 on the right. Text, borders or graphics that intrude into the quiet zone are a frequent, avoidable cause of scan failures.
What Print-Quality Grades Actually Measure
A scanner tells you whether a code can be read. A verifier tells you how well it was printed, by grading it against an ISO standard. ISO/IEC 15415 (2D) and ISO/IEC 15416 (linear) both grade on a 4.0 to 0 scale, also expressed as A to F. The overall grade is the lowest of several individual parameters, including:
- Symbol contrast — the difference between the darkest and lightest areas. Low contrast is the classic problem on foil and coloured board.
- Modulation and reflectance margin — how consistently dark modules look dark and light modules look light.
- Axial and grid non-uniformity — whether the code has been stretched or skewed, often by product movement during printing.
- Fixed pattern damage — damage to the finder and timing patterns that a reader uses to locate the code.
- Unused error correction — how much of the code's built-in redundancy is left after print defects are accounted for.
The overall grade is only as good as the weakest parameter. A code with excellent contrast but a damaged finder pattern still fails.
The Most Common Reasons Pharma Barcodes Fail
- Glare on foil. Reflective aluminium washes out contrast. Print a white ink base under the code, or use a coder and ink designed for foil.
- Low contrast on coloured cartons. Dark codes need a light background. Red is effectively invisible to many red-light scanners.
- Smudging on varnish or UV coating. Leave the code panel unvarnished, or use an ink matched to the coating.
- Stretched codes from line speed. If the encoder and conveyor are out of sync, modules print elongated. Check grading at full production speed.
- Wrong data syntax. A perfectly printed code still fails if the application identifiers are wrong: expiry must be AI (17) in YYMMDD format, the GTIN must be 14 digits with a valid check digit, and variable-length fields need the correct separator.
- Printhead wear. A worn or partly blocked nozzle produces a white line through every code. Without 100% in-line inspection, a whole batch can be coded this way.
QR Code or GS1 DataMatrix?
The Schedule H2 rule accepts either a bar code or a QR code and doesn't name a symbology. GS1 DataMatrix is the long-standing healthcare choice and is generally more compact for the same data. QR codes are what patients' phone cameras open by default, which matters for a code that's supposed to let a patient check a medicine. GS1 Digital Link, which encodes GS1 identifiers inside a web address, lets one QR code serve both purposes — it carries GS1-structured data for the supply chain and opens a verification page on a phone. It's also the direction GS1's Sunrise 2027 transition to 2D barcodes is heading.
Building Verification Into the Line
- 100% in-line camera inspection that reads and grades every code and diverts failures to a reject bin.
- Periodic off-line verification with a calibrated ISO verifier, on a sample from each batch and at every line or substrate change.
- Data checks before print, so a code with the wrong date format or a bad check digit is stopped before it reaches the printhead.
- Records of grading results kept with the batch record, ready for an inspection.
